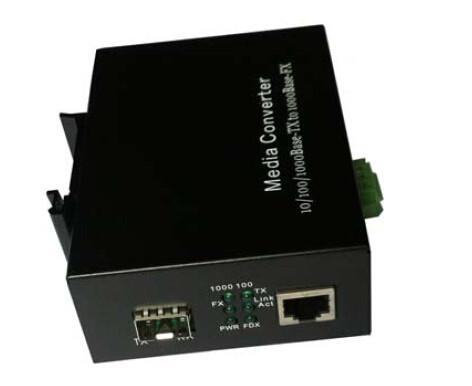

Gigabit SFP Slot Industrial Fiber Media Converter with high speed
Introduction
FR-IGMC-1S1T is a speediness 10/10/1000Base-TX Industrial Ethernet Media Converter, easy to connect
server, repeater, switch,device to device, Can satisfy customers require for long distance, high speed,
wide broadcast.
FR-IGMC-1S1T supports 1 TP ports and 1 SFP SLOT fiber ports. TP(RJ45) support 10/100/1000Base-T(X), Full/Halfduplex mode,and auto MDI/MDI-X connection;1000BaseFX supports single-/multi-mode, SC/ST connector, optional.
It adopt industry standard design, IP40 protection, power supply input(12V～36VDC), -40 to
80°C working temperature.
Key Features
Ø IEEE802.3/802.3u/802.3x,store and forward
Ø Plug-and-play, easy to installation
Ø 10/100/1000M, F/H duplex, MDI/MDI-X auto negotiation
Ø -40℃ to 80℃ operating temperature range
Ø Designed for industrial applications. IP40 protection
Specification
Ø Standards: comply with IEEE802.1 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3 100Base-FX
Ø RJ45 port rate: 10/100/1000BaseT(X) auto connection, Full /Half duplex or force work mode, and support MDI/MDI-X connection
Ø Fiber Ports: 1000BaseFX ports (SC/ST/FC/LC connector, optional)
Ø Single-mode: 20, 40,60, 80,100,120Km,optional
Ø Multi-mode: 550M
Ø Wavelength: 850nm, 1310 nm, 1550nm
Ø Typical 1000Base-FX: Multi-mode:1.25G, 1310nm, 2Km, average output≥-18dBm, sensitivity≤-35dBm
Single-mode:1.25G, 1310nm, 20Km, average output≥-12dBm, sensitivity≤-36dBm
Power Input options
Ø Input Voltage: 24VDC(9~36V DC)
Ø Opposite connection protection
Environmental Limits
Ø Operating Temperature: -40 ℃to 80°℃
Ø Storage Temperature: -40℃ to 85℃
Ambient Relative Humidity: 5% to 95% (non-condensing)
