Functional Converter Card 2x1.25G1000 Base-X to 1x2.5G 1000 Base-X Multiplexer

Name: Functional Converter Card 2x125G1000 BaseX to 1x25G 1000 BaseX Multiplexer
Brand: Fiberroad
Price: 1 USD

Brand Name : Fiberroad

Model Number : FR-6301

Certification : CE FCC RoHS

Place of Origin : China

MOQ : 1PC

Price : Pls send request details

Payment Terms : T/T, Western Union

Supply Ability : 5000pcs/Month

Delivery Time : 2-3 workdays

Packaging Details : Standard neutral or brand packing

Product name : managed media converter

Warranty : life-long maintance

Operating temperature : 0 ~ +50℃

Transmission distance : 2/25/40/60/80/100/120km

Material : metal,Iron

Storage temperature : -20 ~ +70℃

Contact Now

Functional Converter Card 2x1.25G1000Base-X to 1x2.5G 1000Base-X Multiplexer

The Gigabit Ethernet Multiplexer aggregates 2 port Gigabit Ethernet into 1 port 2.5G uplink, reducing the conversion CAPEX and increasing the fiber utilization effectively. The multiplexer can be used either in point-to-point topology fuctioning as a media converter for transporting two Gigabit Ethernet services over one fiber or in CWDM system working as a wavelength converter for extending the system’s transmits- sion capacity doubly. The multiplexer is equipped with three SFP-based ports: SFP1 is 2.5G uplink port, SFP2 and SFP3 are Gigabit Ethernet service ports.The multiplexer must be used in couples.

Specification

Transmission Distance	Twisted-pa: 100M (standard CAT5/CAT5e cable) SFP, Distance depend on plug-in Fiber Tranceiver
Forwarding Mode	Store-and-forward
Forwarding Frame Length	9000Bytes
Function Features	Provide 3 standard SFP slots: 2 x GE ports at the client side 1 x 2.5G ports at the line side; 2 x GE ports at the client side are isolated from each other; Support cross mapping of the data of all ports; Support statistics on error packet of each port; Support loopback setting of the client side and the line side; Support SNMP network management.
Power Requirement	Operating Voltage DC 5V Rated Current: 1A Power Consumption: Full-load<4W
Environmental Requirement	Operating Temperature: 0℃~50℃ Storage Temperature : -10℃~ 55℃ Relative Humidity: 5%~95% MTBF: 56,000 h Enclosure: Metal
Dimensions	120mm(H)×90mm(D)× 22mm(W)
Weight	100g
Warranty	1 Year
Emissions	FCC Class A, CE Class A

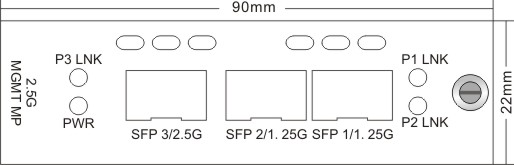

Dimensions
